Description

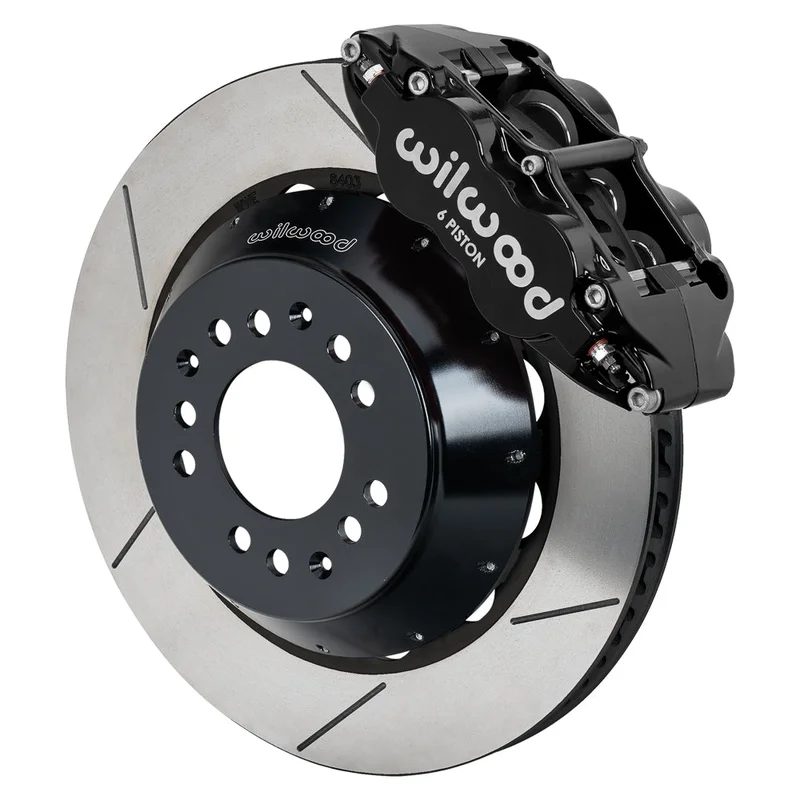

The unsurpassed braking capacity of the Forged Narrow Superlite 6R six-piston caliper serves as the base of this 14.00” big rotor kit use with Wilwood’s Modular Aluminum ProSpindle. FNSL6R kits are engineered application specific for simplified installation and full compatibility with OE master cylinder output and ABS functions where used. Big brake kits provide increased brake capacity and complimentary style with wheel, tire, and suspension upgrades. Optional caliper finishes and rotor designs simplify personalizing the style and braking requirements of any application.
| Calipers | |
|---|---|
| Left Hand – Part No: | 120-11781-BK |
| Right Hand – Part No: | 120-11780-BK |
| Type: | Forged Narrow Superlite 6R |
| Finish Color: | Black Powder Coat |
| Piston Count: | 6 |
| Piston 1 Bore (in): | 1.62 |
| Piston 2 Bore (in): | 1.12 |
| Piston 3 Bore (in): | 1.12 |
| Piston Area (In²): | 4.04 |
| Piston Type: | Stainless |
| Mount Type: | Radial |
| Brake Pad Plate: | 7416 |
| Brake Pad Area (In²): | 8.2 |
| Brake Pad Volume (In³): | 3.8 |
| Pad Compound: | BP-10 |
| Rotors | |
|---|---|
| Left Hand – Part No: | 160-8402-GTB |
| Right Hand – Part No: | 160-8403-GTB |
| Type: | GT 72 Curved Vane |
| Style: | GT Slotted |
| Surface Finish: | Black Electro Coat |
| Material: | Spec-37 Iron |
| Outside Diameter (in): | 14.00 |
| Width (in): | 1.10 |
| Vane Count: | 72 CV |
| Design Type: | GT-BLK |
| Burnished: | No |
| Dynamically Balanced: | Yes |
| Rotor Hats | |
|---|---|
| Hat – Part No: | 170-6994 |
| Type: | Big Brake Hat – Flared Bell |
| Material: | Aluminum |
| Finish Color: | Black E-Coat |
| Hat Offset Dimension (in): | 1.880 |
| Bolt Circle 1: | 5 x 4.50 |
| Bolt Circle 2: | 5 x 4.75 |
| Bolt Circle 3: | |
| Stud Diameter – BC 1: | 0.520 |
| Stud Diameter – BC 2: | 0.520 |
| Stud Diameter – BC 3: | 0.000 |
